Safety Valves are for compressible fluids-steam and other gases. Compressible fluids need quick pressure relief. So safety valves have pop seats and plugs which open rapidly on over pressure.
Specifications
Brand: Floin
Model:SV501
Application :Steam, Air ,Gas
Size:25 to 300 NB
Connection: Flanged
Body Material: CI/WCB/CF8/CF8M
Internals: SS 410/SS304/SS316
Safety Relief Valves are for the non-compressible fluids-liquids such as water and oil.. Immediate full-flow discharge is not required as a very tiny flow considerably decreases overpressure, thus opening and closing the socket and seat very slowly, discharging the liquid back to some low pressure point in the scheme.
Specifications
Brand: Floin
Model:SRV501
Application :Liquid
Size:25 to 300 NB
Connection: Flanged
Body Material: CI/WCB/CF8/CF8M
Internals: SS 410/SS304/SS316
Pressure Safety Valves are For compressible fluids-steam and other gases. Compressible fluids need quick pressure relief. So safety valves have pop seats and plugs which open rapidly on over pressure
Specifications
Brand: Floin
Model:SV501
Application :Steam, Air ,Gas
Size:25 to 300 NB
Connection: Flanged
Body Material: CI/WCB/CF8/CF8M
Internals: SS 410/SS304/SS316

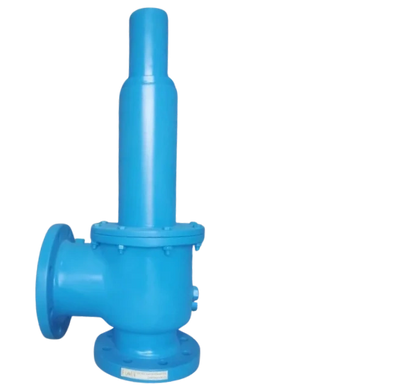

Pressure Relief Valves are for the non-compressible fluids-liquids such as water and oil. Immediate full-flow discharge is not required as a very tiny flow considerably decreases overpressure, thus opening and closing the socket and seat very slowly, discharging the liquid back to some low pressure point in the scheme.
Specifications
Brand: Floin
Model:SRV501
Application :Liquid
Size:25 to 300 NB
Connection: Flanged
Body Material: CI/WCB/CF8/CF8M
Internals: SS 410/SS304/SS316

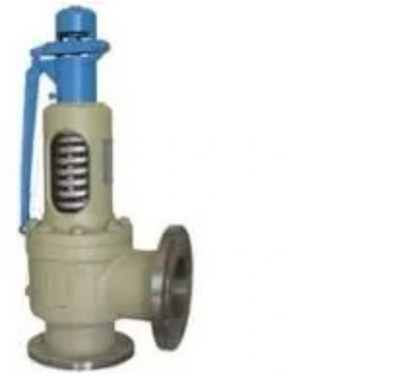

Standard safety valves/Safety Relief Valve are generally fitted with an easing lever, which enables the valve to be lifted manually. This is usually done as part of routine safety checks, or during maintenance to prevent seizing.
Specifications
Brand: Floin
Size:25 to 300 NB
Connection: Flanged
Body Material: CI/WCB/CF8/CF8M
Internals: SS 410/SS304/SS316

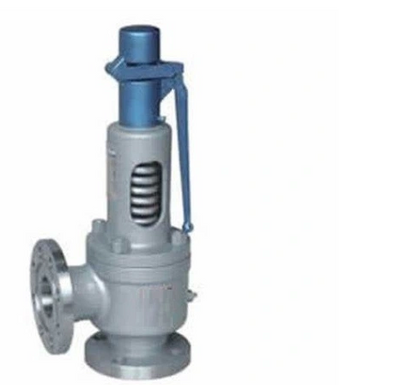

The Open bonnet type safety valve is, allowing the spring chamber to communicate with the atmosphere, which is beneficial to reduce the temperature of the spring, and is mainly suitable for containers of high temperature gas in which the medium is steam. Open bonnets are usually advantageous when the safety valves are used on high temperature fluids or for boiler applications.
Specifications
Brand: Floin
Size:25 to 300 NB
Connection: Flanged
Body Material: CI/WCB/CF8/CF8M
Internals: SS 410/SS304/SS316

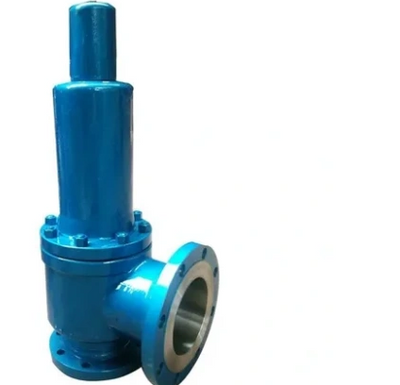

Steam jacket safety valve has a thermal insulation jacket outlet the body. The jacket is supplied with continuous circulated steam through the thermal insulation inlet and outlet to insure heat preservation of the medium inside the safety valves. And the sealing face surface are also flushed by steam .
Specifications
Brand: Floin
Model:SVSJ510
Size:25 to 300 NB
Connection: Flanged
Body Material: WCB/CF8/CF8M
Internals: SS304/SS316

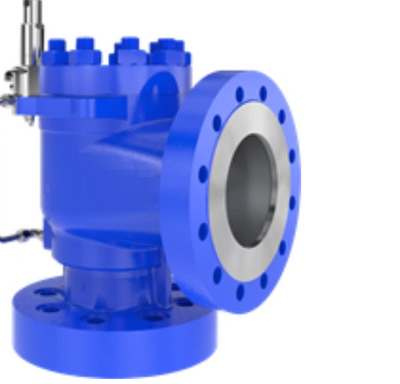

A Pilot operated safety valve is controlling the opening and closing of the main valve. The pilot valve is a direct loaded safety valve that responds to be system pressure and transmits it to the dome of the main valve. The main valve is held closed by the pressure above its disc or piston and opens when the pilot valve releases the pressure.
Specifications
Brand: Floin
Model:SVP601
Size:25 to 300 NB
Connection: Flanged
Body Material: CI/WCB/CF8/CF8M
Internals: SS 410/SS304/SS316
A thermal relief valve is a safety valve designed to protect pressure vessels, pipelines, and other fluid or gas systems from overpressure due to temperature changes. These valves are specifically designed to release excess pressure from the system when it exceeds the maximum allowable working pressure due to temperature fluctuations.
Specifications
Brand: Floin
Model:TV100
Size:15 to 50 NB
Connection: Flanged/Screwed
Body Material: CI/WCB/CF8/CF8M
Internals: SS 410/SS304/SS316
