TUBULAR LEVEL GAUGE
Tubular Level Gauge is direct indication of liquid level in a vessel. The level of liquid inside the glass tube is same as the liquid level in the tank. Scale mounted on C Frame indicates liquid level. These are relatively simple devices that can be expected to work for years.
Specifications
Brand : Floin
Model : LG 910
Size : 15 TO 50 NB
Connection : Flanged/screwed
Mounting : Side
Material : CS/SS304/SS316

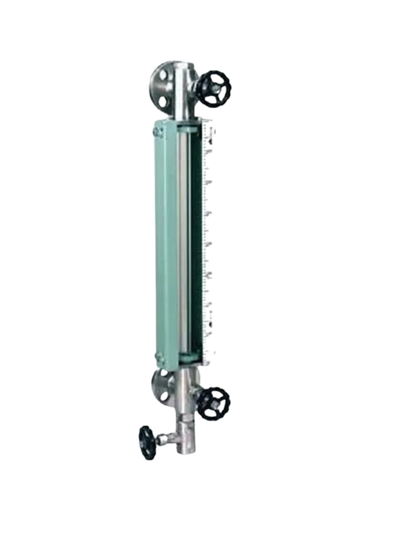

TRANSPARENT LEVEL GAUGE
Transparent level gauge can be used to observe the liquid level changes based on the transparency boundary of two media.
Specifications
Brand : Floin
Model : TLG 930
Size : 15 TO 50NB
Connection : Flanged/screwed
Mounting : Side
Material : CS/SS304/SS316
REFLEX LEVEL GAUGE
Reflex level gauge. One side surface of Reflex Glass to use flat glass has several grooves for reflecting prism. The principle of the Reflex Glass is based on the difference in the refractive indices of liquid and gas or in particular of water and steam. Liquid level shows conspicuously dark hard colour for liquid space and light white colour for empty space.
Specifications
Brand : Floin
Model : RLG 940
Size : 15 TO 50NB
Connection : Flanged/screwed
Mounting : Side
Material : CS/SS304/SS316
MAGNETIC LEVEL GAUGE
Magnetic level gauges use magnetism to link the indicator in a gauge to a float inside of float chamber in order to accurately show the level of fluid within. As the position of the float changes, the indicator moves up or down by the same amount, meaning that the level in the measuring chamber will always be the same as the fluid level in the vessel itself
Specifications
Brand : Floin
Model : MLG 950
Size : 15 TO 50NB
Connection : Flanged/screwed
Mounting : Side
Material : SS304/SS316
TUBULAR LEVEL GAUGE-WITH TIE ROD
The tubular level gauge is assembled firmly with heavy toughened borosilicate glass with tie rods. Tubular Level Gauge is direct indication of liquid level in a vessel. The level of liquid inside the glass tube is same as the liquid level in the tank.
Specifications
Brand : Floin
Model : LG 920
Size : 15 TO 50 NB
Connection : Flanged/screwed
Mounting : Side
Material : CS/SS304/SS316
FLOAT AND BOARD LEVEL INDICATOR
Float and Board Level Indicator is a mechanical float operated level Indicator that gives measurement of liquid level. Perfectly aligned guide wire, pulley and scale. Ideal for outdoor Installation.
Specifications
Brand : Floin
Model : FCL 960
Size : Customized
Mounting : Vertical
Material : ASTM A105/Carbon Steel/Customized
Fasteners : ASTM A 193 Gr B7-A194 Gr2H
SIGHT GLASS
This Sight Glass is designed to be welded directly onto a tank or other liquid-containing vessel. Standard Liquid Level Gauge units are furnished with a flat bottom. Upon request, the Sight Glass can be machined with a cylindrical radius to match the contour of the vessel. The Sight Glass are available in single or multiple section types.
Specifications
Brand : Floin
Model : SG 310
Size : 50 to 300 NB
Connection : Flanged
Mounting : Vertical
Material : ASTM A105/Carbon Steel/SS304/SS316/Customized
Glass : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass
Gasket : PTFE/CAF/NON-Asbestos
Fasteners : ASTM A 193 Gr B7-A194 Gr2H/SS304/SS316
SIGHT GLASS-SCREWED
Screwed sight glass (Oil Glass) is used for monitoring fluid levels Typical applications are hydraulic system reservoirs and lubricating, cutting and cooling fluid tanks
Specifications
Brand : Floin
Model : OG 410
Size : 20 to 80 NB
Connection : Screwed
Mounting : Vertical
Material : ASTM A105/Carbon Steel/SS304/SS316/Customized
Glass : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass
Gasket : PTFE/Rubber.
