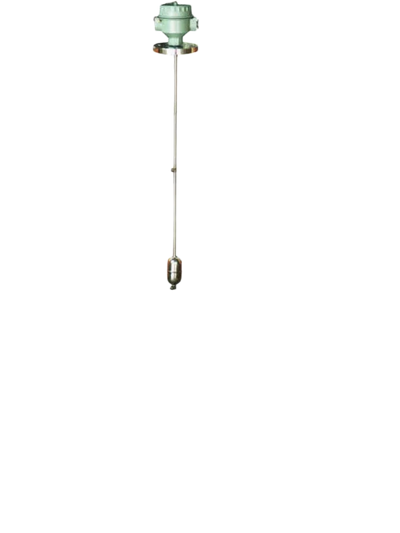

TOP MOUNT MOUNTED LEVEL SWITCH
Top Mounted Level Switch is monitors the liquid level in a tank and sends a trip signal to another device such as a Pump to protect it. These Level Switches are used for Pump protection, Cooling Circuit protection, high & low level signal and general level monitoring.
Specifications
Brand : Floin
Model : TML 1010
Size : 25-50NB
Height : Customized
Mounting : Vertical
Material : SS304/SS316/PP/PVC

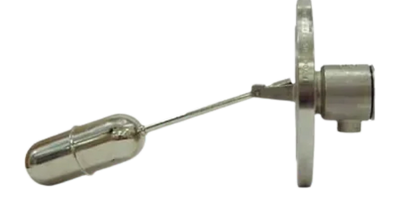

SIDE MOUNT LEVEL SWITCH
Side mounted level switch float mounted at one end of connecting rod moves with change in level, magnetic capsule at other end of rod moves accordingly within fixed limits Switch contacts across the face change accordingly.
As the tank fills up the float lifts up due to buoyancy. The other end of the float which is magnetic in nature goes down and during its downward motion, triggers the switch assembly and the contacts get closed, which can be used to operate an alarm or any other audio/visual load.
Specifications
Brand : Floin
Model : SML 1020
Size : 25 TO 50NB
Connection : Flanged/screwed
Mounting : Side
Material : SS304/SS316
FLOW SWITCH
Flow switch is monitors the flow of liquid, gas, or steam. When the flow reaches a certain pre-set flow rate, a switch is triggered that has the capability to signal an action, such as shutting down the flow entirely. This is done through electrical signals created by the switching mechanism
Specifications
Brand : Floin
Model : FS 1030
Size : 25 TO 50NB
Connection : Flanged/screwed
Mounting : Top

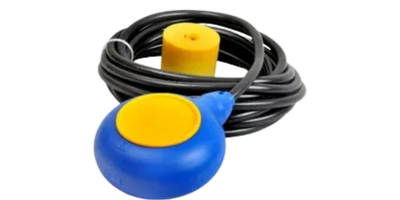

BALLOON TYPE LEVEL SWITCH
Balloon type float switch has a body exterior made of a durable and oil acid resisting synthetic compound. The device has been found extremely useful and dependable as a means for governing pumps and for signalling purposes. A weight body attached to the cable effectively prevents the cable from being sharply flexed. The switching elements to which the cable conductors are connected consist of a sealed mercury switch.
Specifications
Brand : Floin
Model : BLS 1040
