FLOAT AND BOARD LEVEL INDICATOR
Float and Board Level Indicator is a mechanical float operated level Indicator that gives measurement of liquid level. Perfectly aligned guide wire, pulley and scale. Ideal for outdoor Installation.
Specifications
Brand : Floin
Model : FCL 960
Size : Customized
Mounting : Vertical
Material : ASTM A105/Carbon Steel/Customized
Fasteners : ASTM A 193 Gr B7-A194 Gr2H

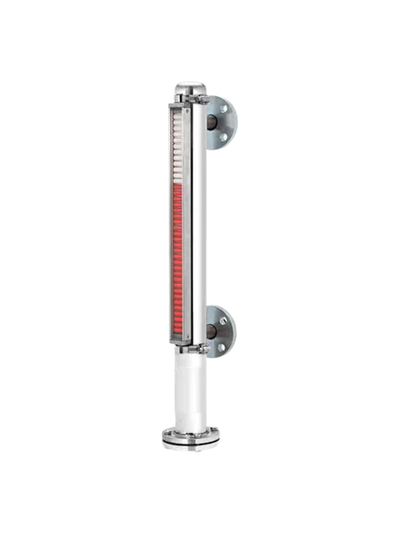

MAGNETIC LEVEL INDICATOR
Magnetic level gauges use magnetism to link the indicator in a gauge to a float inside of float chamber in order to accurately show the level of fluid within. As the position of the float changes, the indicator moves up or down by the same amount, meaning that the level in the measuring chamber will always be the same as the fluid level in the vessel itself
Specifications
Brand : Floin
Model : MLG 950
Size : 15 TO 50NB
Connection : Flanged/screwed
Mounting : Side
Material : SS304/SS316

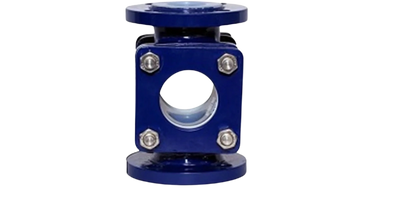

DOUBLE WINDOW SIGHT FLOW INDICATOR
Double Window Sight Flow Indicator/Sight Glass is a simple assembly of two glasses on single cast or fabricate body at two opposite sides. Use of these type of flow indicator is for spot inspection and view of process parameter.
Specifications
Brand : Floin
Model : SFI 110
Size : 15 to 300 NB
Connection : Flanged/Screwed
Mounting : Horizontal / vertical
Material : CI/WCB/CF8/CF8M/Customized
Glass : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass
Gasket : PTFE/CAF/NON-Asbestos
Fasteners : ASTM A 193 Gr B7-A194 Gr2H/SS304/SS316
OIL INDICATOR
Oil indicator (Oil Glass) is used for monitoring fluid levels Typical applications are hydraulic system reservoirs and lubricating, cutting and cooling fluid tanks
Specifications
Brand : Floin
Model : OG 410
Size : 20 to 80 NB
Connection : Screwed
Mounting : Vertical
Material : ASTM A105/Carbon Steel/SS304/SS316/Customized
Glass : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass
Gasket : PTFE/Rubber.
