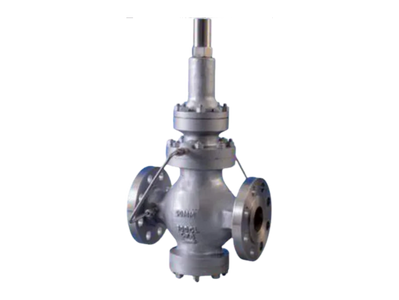

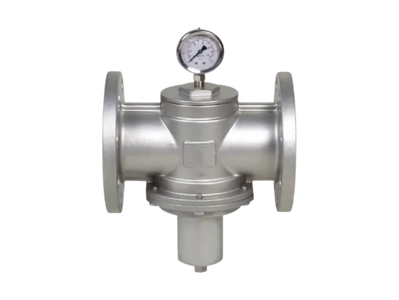

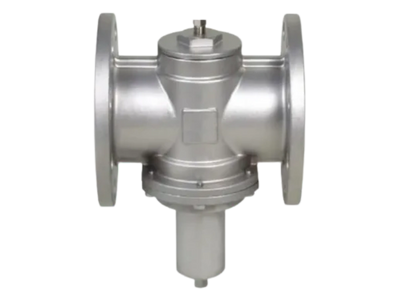

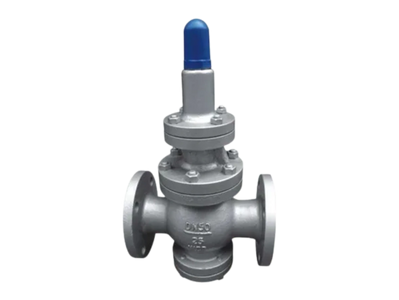

PRESSURE REDUCING VALVE

Pressure Reducing  valve reduces the pressure of the Steam , Air, Gas and Liquid that goes through it, and is used to obtain a regulated and constant value at its outlet. The pressure reducing valve is fully automatic.

Pressure Reducing Valve controls and maintains a preset, reduced downstream (outlet) pressure by causing the main valve to throttle and sustain the desired reduced pressure regardless of variations in demand and upstream (inlet) pressure. The throttled position of the main valve is controlled by an adjustable pilot valve operating in conjunction with an orifice. The pilot valve senses the downstream (outlet) pressure and reacts immediately to reposition the valve as the outlet pressure tends to increase or decrease with varying demand.

Specifications

Brand                                   : Floin

Model                                  : PRV 1102

Size                                      : 15 to 600 NB

Temperature Range     : -40 Deg C TO 120 Deg C

Material                             : WCB/CF8/CF8M/CF3/CF3M

Inlet Pressure (max)     : 0.3 to 10 Bar

Outlet Pressure (max) : 15MMWC to 7 Bar
