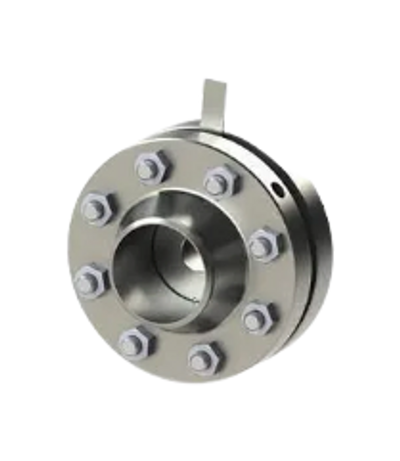

ORIFICE PLATE ASSEMBLY
Weldneck, Screwed, Slip on flanges Flange taps, vent and drain. Plate design as per B S ./A P I Std H T Bolts Nuts and Jack screw provision
Specifications
Brand : Floin
Model : OPA 610
Size : 15 to 600 NB
Connection : Flanged
Material : ASTM A105/Carbon Steel/SS304/SS316/Customized
Gasket : PTFE/CAF/NON-Asbestos
Fasteners : ASTM A 193 Gr B7-A194 Gr2H/SS304/SS316

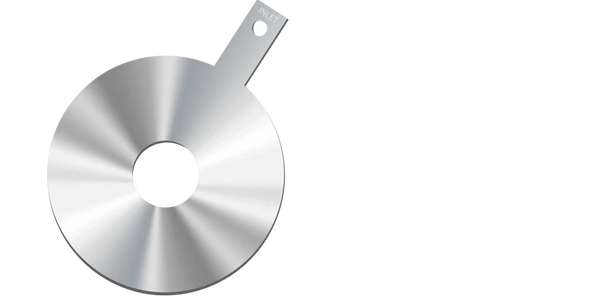

ORIFICE PLATE
An orifice plate is used for measuring flow rate, for reducing pressure or for restricting flow .
Types
- Concentric Orifice Plate
- Eccentric Orifice Plate
- Segmental Orifice Plate
- Quadrant Edge Orifice Plate
Specifications
Brand : Floin
Model : OP 620
Size : 15 to 600 NB
Material : SS304/SS316/Customized

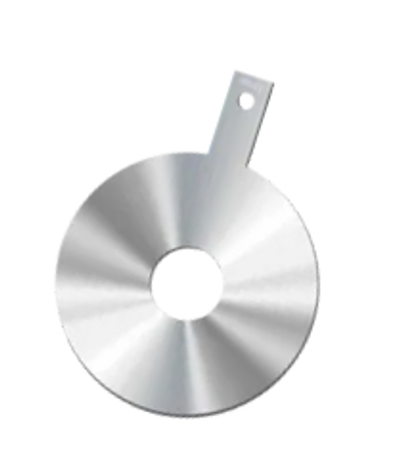

Concentric Orifice Plate
The most common orifice plate is the square-edged, concentric bored design. It’s used on most processes including clean liquids, gases and steam flow. It is usually made of stainless steel. Other materials like nickel and Monel are used for a good corrosive resistant property. This type of orifice plate has a very high accuracy.

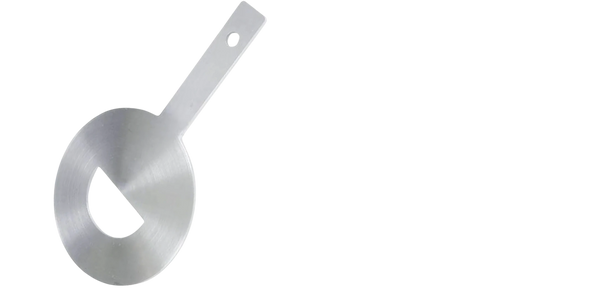

Segmental Orifice Plate
The segmentally bored orifice plates contain a hole that is a segment of a concentric circle. Like the eccentric orifice plate design, the segmental hole should be offset downward in gas flow applications. Segmental bores are generally used for measuring liquids or gases which carry non-abrasive impurities such as sewage treatment, steel, chemical, water conditioning, paper and petrochemical industries.

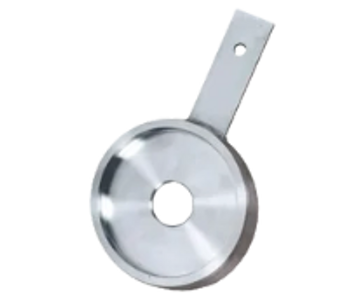

ORIFICE PLATE RTJ TYPE
The RTJ type orifice plate incorporates an integral gasket, either oval or octagonal ring, for mounting between ring type joint flanges. It is based on proven technology, has no moving parts and is suitable for high temperature and pressure applications. Orifice plates are recommended for clean liquids, gases and low velocity steam flows. .
Specifications
Brand : Floin
Model : OPR 630
Size : 25 to 600 NB
Material : SS304/SS316/Customized

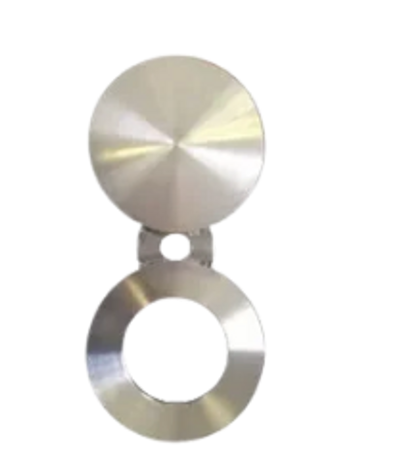

SPECTACLES BLIND
Spectacle Blinds are simple safety devices that are installed between two pipe flanges. During normal operation, the open end is installed as a spacer to allow uninterrupted flow. To stop the flow in the pipeline, the blind end is rotated into place between the flanges. .
Specifications
Brand : Floin
Model : OPS 640
Size : 25 to 600 NB
Material : SS304/SS316/Customized
