OIL GLASS/SCREWED SIGHT GLASS
Oil Glass is used for monitoring fluid levels Typical applications are hydraulic system reservoirs and lubricating, cutting and cooling fluid tanks.
Specifications
Brand : Floin
Model : OG 410
Size : 20 to 80 NB
Connection : Screwed
Mounting : Vertical
Material : ASTM A105/Carbon Steel/SS304/SS316/Customized
Glass : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass
Gasket : PTFE/Rubber
SIGHT GLASS/WELD PAD SIGHT GLASS
This Sight Glass is designed to be welded directly onto a tank or other liquid-containing vessel. Standard Liquid Level Gauge units are furnished with a flat bottom. Upon request, the Sight Glass can be machined with a cylindrical radius to match the contour of the vessel. The Sight Glass are available in single or multiple section types .
Specifications
Brand : Floin
Model : SG 310
Size : 50 to 300 NB
Connection : Flanged
Mounting : Vertical
Material : ASTM A105/Carbon Steel/SS304/SS316/Customized
Glass : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass
Gasket : PTFE/CAF/NON-Asbestos
Fasteners : ASTM A 193 Gr B7-A194 Gr2H/SS304/SS316

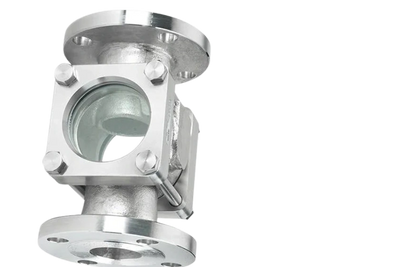

DOUBLE WINDOW SIGHT FLOW INDICATOR
Double Window Sight Flow Indicator/Sight Glass is a simple assembly of two glasses on single cast or fabricate body at two opposite sides. Use of these type of flow indicator is for spot inspection and view of process parameter.
Specifications
Brand : Floin
Model : SFI 110
Size : 15 to 300 NB
Connection : Flanged/Screwed
Mounting : Horizontal / vertical
Material : CI/WCB/CF8/CF8M/Customized
Glass : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass
Gasket : PTFE/CAF/NON-Asbestos
Fasteners : ASTM A 193 Gr B7-A194 Gr2H/SS304/SS316
SIGHT FLOW INDICATOR FLAPPER TYPE
Flapper Type Sight Flow Indicators are best suited transparent or slightly opaque solutions and are used for gases also. Position of the flapper indicates flow. One important use of these flow indicators is, in pipelines where a downstream value may remain closed and even through the flow indicator remains full, there may not be any flow. In such cases, the flapper position alone can indicate where there is flow.
Specifications
Brand : Floin
Model : SFI 120
Size : 15 to 300 NB
Connection : Flanged/Screwed
Mounting : Horizontal / Vertical
Material : CI/WCB/CF8/CF8M/Customized
Glass : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass
Gasket : PTFE/CAF/NON-Asbestos
Fasteners : ASTM A 193 Gr B7-A194 Gr2H/SS304/SS316
SIGHT FLOW INDICATOR ROTATING WHEEL TYPE
Rotating wheel (Rotary) type Sight Flow Indicators are suitable for installation in any position, but are particularly adapted to pipelines carrying dark opaque solutions, where the motion of the wheel is easily detected. This model is equally adapted to transparent solutions and gases. It is frequently installed where observations must be made from a distance.
Specifications
Brand : Floin
Model : SFI 130
Size : 15 to 300 NB
Connection : Flanged/Screwed
Mounting : Horizontal / vertical
Material : CI/WCB/CF8/CF8M/Customized
Glass : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass
Gasket : PTFE/CAF/NON-Asbestos
Fasteners : ASTM A 193 Gr B7-A194 Gr2H/SS304/SS316
SIGHT FLOW INDICATOR DRIP TUBE TYPE
Drip Type Sight Flow Indicators are best adapted to vertical downward flow. These models are particularly useful in distillation and similar apparatus where flow is apt to be intermittent. They are designed without any obstruction to handle the intermittent flow as.
Specifications
Brand : Floin
Model : SFI 140
Size : 15 to 300 NB
Connection : Flanged/Screwed
Mounting : Horizontal / Vertical
Material : CI/WCB/CF8/CF8M/Customized
Glass : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass
Gasket : PTFE/CAF/NON-Asbestos
Fasteners : ASTM A 193 Gr B7-A194 Gr2H/SS304/SS316
FULL VIEW FLOW GLASS
Full View Flow Glass are assembled with tubular Borosilicate glass. These indicators are simple in construction and used for checking flow from any direction where various values or pump might have to be operated based on the flow in the line. These are recommended where there is no mechanical strain in the pipeline. Inside diameter of the glass tube is as large as or larger than the nominal size of the flow indicators.
Specifications
Brand : Floin
Model : SFI 150
Size : Customized
Connection : Flanged/Screwed
Mounting : Horizontal / vertical
Material : ASTM A105/Carbon Steel/SS304/SS316/Customized
Glass : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass
Gasket : PTFE/CAF/NON-Asbestos
Fasteners : ASTM A 193 Gr B7-A194 Gr2H/SS304/SS316
