LEVEL GAUGE
Level gauges are sensing and measuring devices used to monitor the level of a fluid in a tank or other storage container. These instruments are commonly used in industrial process applications to monitor fluid levels in drums, tanks, pressure vessels, and other similar applications
Specifications
Brand : Floin
Size : 15 TO 50 NB
Connection : Flanged/screwed
Mounting : Side
Material : CS/SS304/SS316

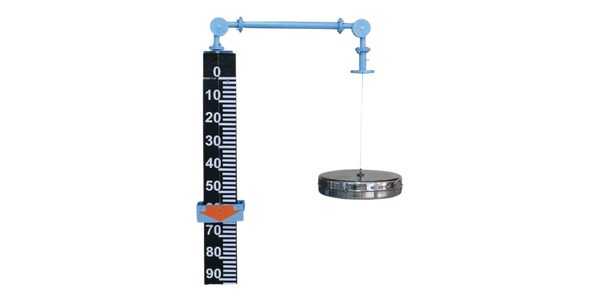

Float and Board Level Indicator
Float & Board level indicator is based on the buoyancy principle and is linked as per balanced counter weight system. float inside the tank and counter weight (scale pointer) connected by the rope wire which is moving freely on the pulley assembly. When the storage tank is in empty position, the float located inside the bottom of the scale pointer located at zero level on external scale. If the liquid level rise in the tank, the float move upper side and scale pointer move downward on the graduated scale to show liquid level inside the storage tank. If liquid level turbulence inside the tank use float guide rope wire assembly with anchor for stability of float.
Specifications
Brand : Floin
Model : FCL 960
Size : Customized
Mounting : Vertical
Material : ASTM A105/Carbon Steel/Customized
Fasteners : ASTM A 193 Gr B7-A194 Gr2H
