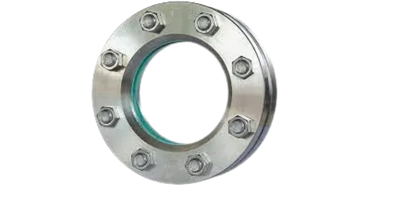

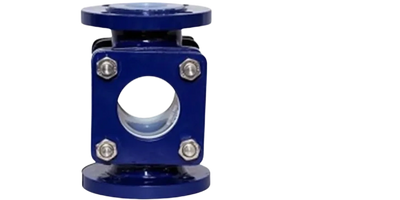

SIGHT GLASS/SIGHT FLOW INDICATOR

Sight flow indicator provides a window into a process pipeline that allows operators a visual means of verifying liquid flow and flow direction

Available in Flanged, Screwed and Pad types. Double / Single Window, Full View, Angular , Rotating wheel, Flapper and Drip tube design. Sight flow indicators Suitable for mounting in any direction.

Brand                                  : Floin

Size                                      :15 to 300 NB

Connection                      : Flanged/Screwed

Mounting                          : Horizontal / vertical

Material                             : CI/WCB/CF8/CF8M/ASTM A105/Carbon Steel/SS304/SS316/Customized

Glass                                  : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass

Gasket                                :PTFE/CAF/NON-Asbestos/Rubber

Fasteners                          :ASTM A 193 Gr B7-A194 Gr2H/SS304/SS316
