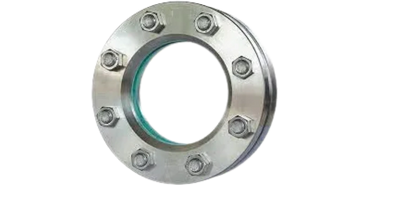

SIGHT GLASS/WELD PAD SIGHT GLASS
Available in Circular and Rectangular Pad types.

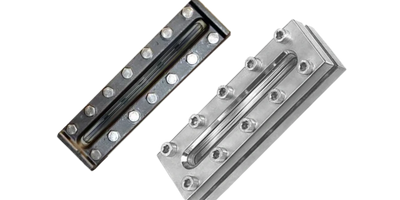

Weld pad sight glass, also known as weld pad liquid level gauge or weld pad level indicator, is a kind of liquid level gauge that is directly welded in a way of tack welding or full welding to the container walls or in the tanks.
Weld pad level gauges are available in both reflex and transparent gauge glass configurations. It is generally used for pressure vessels, vacuum vessels, tanks, reactors, filters, boiling beds and other types of closed containers or non-critical process containers.
Tanks must be relieved of pressure and drained to install and service the gauge.
Weld pad level gauges are widely used for high vibration, highly viscous liquids, or liquids with considerable amounts of solids generated in the industrial production process of petroleum, chemical, chemical fiber, pharmaceutical, food, etc.
Specifications
Brand : Floin
Size : 50 to 200 NB/Customized
Connection : Flanged/Rectangular Type
Mounting : Vertical
Material : ASTM A105/Carbon Steel/SS304/SS316/Customized
Glass : Toughened Glass/ Toughened Borosilicate Glass/Soda Lime Glass
Gasket :PTFE/CAF/NON-Asbestos/Rubber
Fasteners :ASTM A 193 Gr B7-A194 Gr2H/SS304/SS316

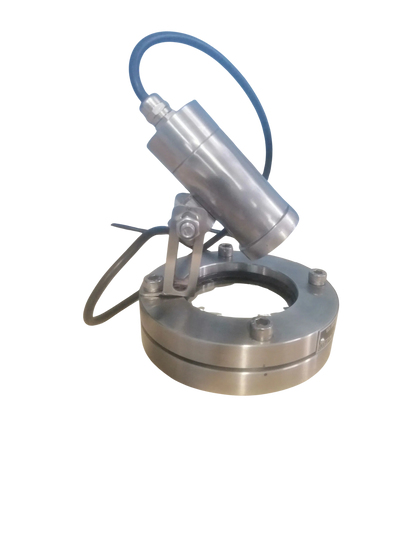

SIGHT GLASS WITH LIGHT
Sight glasses with integrated lights are used to observe processes within tanks and vessels, particularly in industrial settings, where it's crucial to monitor fluid levels, reactions, or other processes while maintaining a sealed and safe environment
Specifications
Input Voltage :240V AC/24 V DC
Input Frequency :50-60 Hertz
Power :8 Watt/12Watt/20 Watt/50 Watt
LED :SMD LED
LED Life :50000 Hrs
Instant ON :Less Than 1 Second
Energy Saving :80%
Illumination Angle :160 degree
Brightness :4W-220Lm/8W-650Lm/12W-700Lm/20W-1100Lm/24Watt-1800Lumens
Wire :0.5 MM x 2 Core
