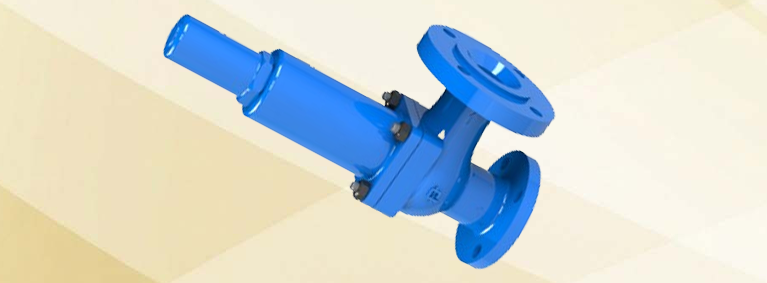

Safety Valves are for compressible fluids-steam and other gases. Compressible fluids need quick pressure relief. So safety valves have pop seats and plugs which open rapidly on over pressure.Floin safety valve mechanism automatically releases pressure from a system when it exceeds a predetermined safe limit, preventing equipment damage or dangerous incidents. This is achieved by a spring holds a valve disc closed; when the pressure from the fluid inside the system overcomes the spring's force, the disc lifts, allowing excess fluid to escape and pressure to be relieved. Once pressure drops to a safe level, the spring forces the disc back down, and the valve reseats to stop the flow .

Specifications

Brand	Floin
Model	SV501
Application	Steam, Air, Gas
Size	25 to 300 NB
Connection	Flanged/Screwed
Body Material	CI / WCB / CF8 / CF8M
Internals	SS 410 / SS304 / SS316

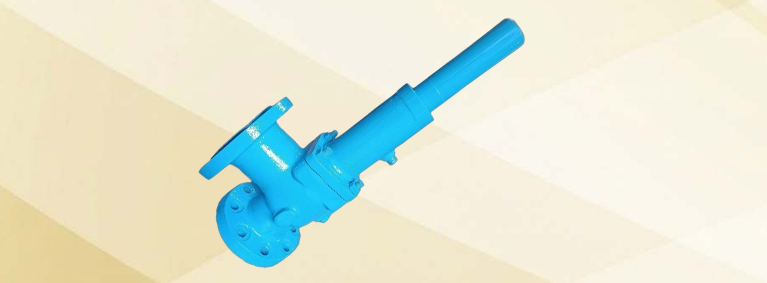

Safety Relief Valves are for the non-compressible fluids-liquids such as water and oil.. Immediate full-flow discharge is not required as a very tiny flow considerably decreases overpressure, thus opening and closing the socket and seat very slowly, discharging the liquid back to some low pressure point in the scheme.

Specifications

Brand	Floin
Model	SRV501
Application	Liquid
Size	25 to 300 NB
Connection	Flanged/Screwed
Body Material	CI / WCB / CF8 / CF8M
Internals	SS 410 / SS304 / SS316

Safety Valves are for compressible fluids-steam and other gases. Compressible fluids need quick pressure relief. So safety valves have pop seats and plugs which open rapidly on over pressure.Floin safety valve mechanism automatically releases pressure from a system when it exceeds a predetermined safe limit, preventing equipment damage or dangerous incidents. This is achieved by a spring holds a valve disc closed; when the pressure from the fluid inside the system overcomes the spring's force, the disc lifts, allowing excess fluid to escape and pressure to be relieved. Once pressure drops to a safe level, the spring forces the disc back down, and the valve reseats to stop the flow .

Specifications

Brand	Floin
Model	SV501
Application	Steam, Air, Gas
Size	25 to 300 NB
Connection	Flanged/Screwed
Body Material	CI / WCB / CF8 / CF8M
Internals	SS 410 / SS304 / SS316

Pressure Relief Valves are for the non-compressible fluids—liquids such as water and oil. Immediate full-flow discharge is not required as a very tiny flow considerably decreases overpressure, thus opening and closing the socket and seat very slowly, discharging the liquid back to some low pressure point in the scheme.

Specifications

Brand	Floin
Model	SRV501
Application	Liquid
Size	25 to 300 NB
Connection	Flanged/Screwed
Body Material	CI / WCB / CF8 / CF8M
Internals	SS 410 / SS304 / SS316

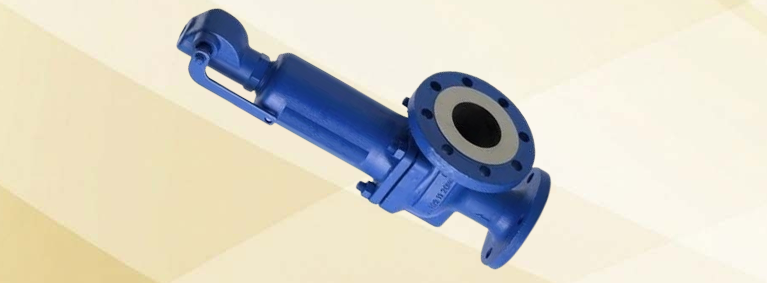

Standard safety valves/Safety Relief Valve are generally fitted with an easing lever, which enables the valve to be lifted manually. This is usually done as part of routine safety checks, or during maintenance to prevent seizing.

Specifications

Brand	Floin
Size	25 to 300 NB
Connection	Flanged/Screwed
Body Material	CI / WCB / CF8 / CF8M
Internals	SS 410 / SS304 / SS316

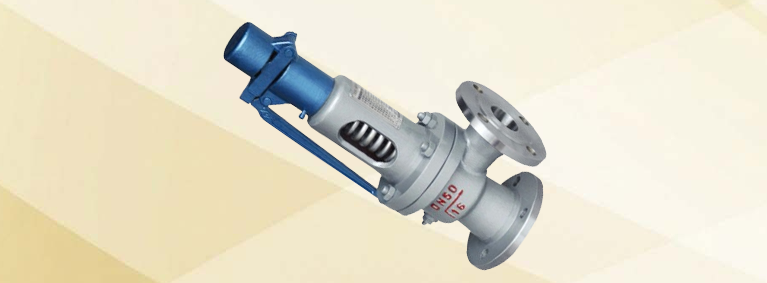

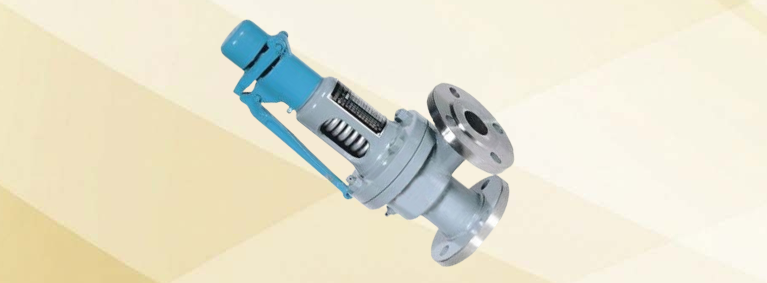

The Open bonnet type safety valve is, allowing the spring chamber to communicate with the atmosphere, which is beneficial to reduce the temperature of the spring, and is mainly suitable for containers of high temperature gas in which the medium is steam. Open bonnets are usually advantageous when the safety valves are used on high temperature fluids or for boiler applications.

Specifications

Brand	Floin
Size	25 to 300 NB
Connection	Flanged/Screwed
Body Material	CI / WCB / CF8 / CF8M
Internals	SS 410 / SS304 / SS316

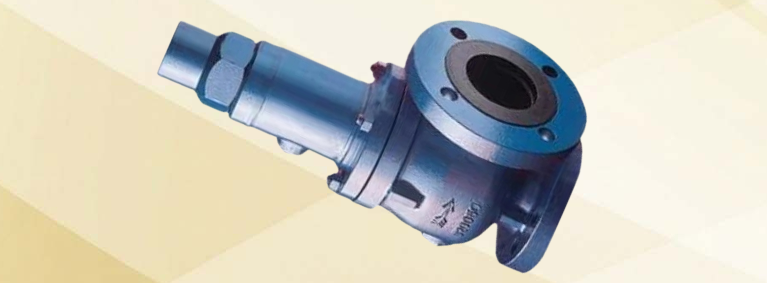

Steam jacket safety valve has a thermal insulation jacket outlet the body. The jacket is supplied with continuous circulated steam through the thermal insulation inlet and outlet to insure heat preservation of the medium inside the safety valves. And the sealing face surface are also flushed by steam .

Specifications

Brand	Floin
Model	SVSJ510
Size	25 to 300 NB
Connection	Flanged/Screwed
Body Material	WCB / CF8 / CF8M
Internals	SS304 / SS316

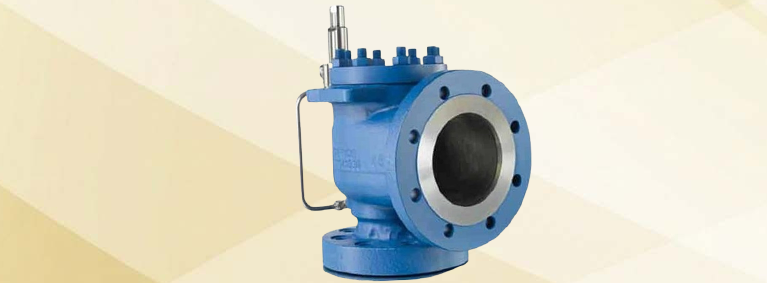

A Pilot operated safety valve is controlling the opening and closing of the main valve. The pilot valve is a direct loaded safety valve that responds to be system pressure and transmits it to the dome of the main valve. The main valve is held closed by the pressure above its disc or piston and opens when the pilot valve releases the pressure.

Specifications

Model	SVP601
Size	25 to 300 NB
Connection	Flanged
Body Material	CI / WCB / CF8 / CF8M
Internals	SS 410 / SS304 / SS316

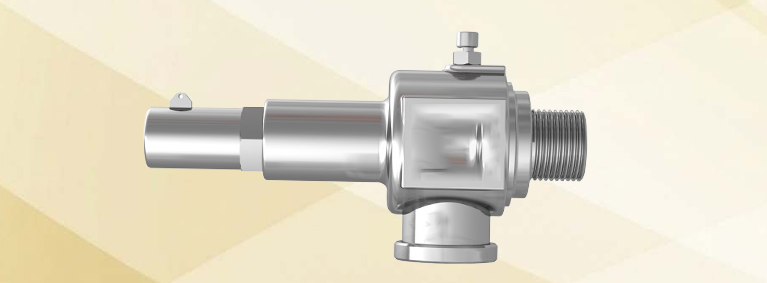

A thermal relief valve is a safety valve designed to protect pressure vessels, pipelines, and other fluid or gas systems from overpressure due to temperature changes. These valves are specifically designed to release excess pressure from the system when it exceeds the maximum allowable working pressure due to temperature fluctuations.

Specifications

Brand	Floin
Model	TV100
Size	15 to 50 NB
Connection	Flanged/Screwed
Body Material	CI / WCB / CF8 / CF8M
Internals	SS 410 / SS304 / SS316
