This Sight Glass is designed to be welded directly onto a tank or other liquid-containing vessel. Standard Liquid Level Gauge units are furnished with a flat bottom. Upon request, the Sight Glass can be machined with a cylindrical radius to match the contour of the vessel. The Sight Glass are available in single or multiple section types.

Specifications

Brand	Floin
Model	SG 310
Size	50 to 200 NB
Connection	Flanged
Mounting	Vertical
Material	ASTM A105 / Carbon Steel / SS304 / SS316 / Customized
Glass	Toughened Glass / Toughened Borosilicate Glass / Soda Lime Glass
Gasket	PTFE / CAF / NON-Asbestos
Fasteners	ASTM A193 Gr B7 - A194 Gr2H / SS304 / SS316

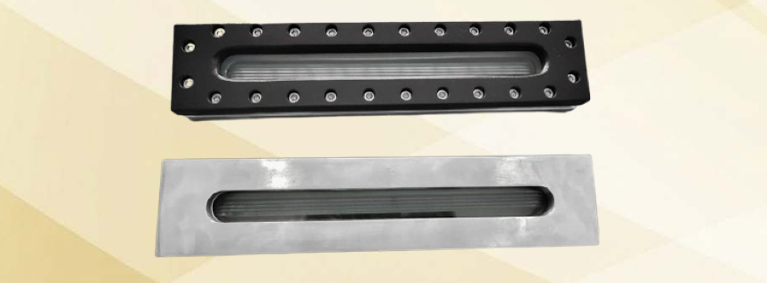

Sight Glass/ Weld pad level gauges are available in both reflex and transparent gauge glass configurations. It is generally used for pressure vessels, vacuum vessels, tanks, reactors, filters, boiling beds and other types of closed containers or non-critical process containers.

Specifications

Brand	Floin
Model	SG 320
Size	Customized
Connection	Rectangular Type
Mounting	Vertical
Material	ASTM A105 / Carbon Steel / SS304 / SS316 / Customized
Glass	Toughened Glass / Toughened Borosilicate Glass / Soda Lime Glass
Gasket	PTFE / CAF / NON-Asbestos
Fasteners	ASTM A193 Gr B7 - A194 Gr2H / SS304 / SS316

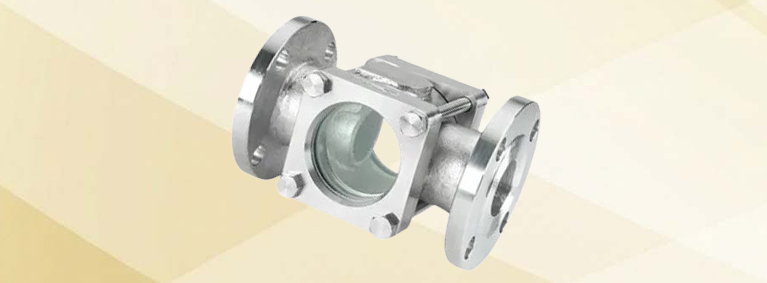

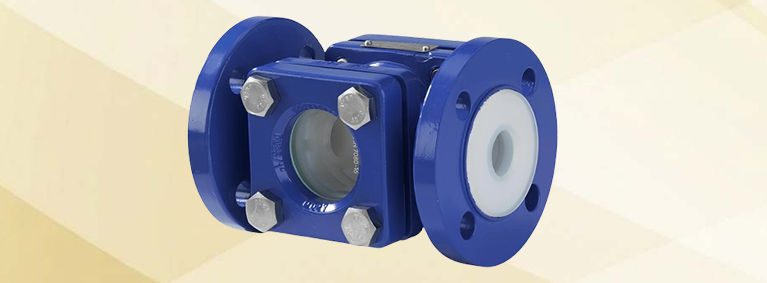

Double Window Sight Flow Indicator/Sight Glass is a simple assembly of two glasses on single cast or fabricate body at two opposite sides. Use of these type of flow indicator is for spot inspection and view of process parameter.

Specifications

Brand	Floin
Model	SFI 110
Size	15 to 300 NB
Connection	Flanged/Screwed
Mounting	Horizontal / Vertical
Material	CI / WCB / CF8 / CF8M / Customized
Glass	Toughened Glass / Toughened Borosilicate Glass / Soda Lime Glass
Gasket	PTFE / CAF / NON-Asbestos
Fasteners	ASTM A193 Gr B7 - A194 Gr2H / SS304 / SS316

Flapper Type Sight Flow Indicators are best suited transparent or slightly opaque solutions and are used for gases also. Position of the flapper indicates flow. One important use of these flow indicators is, in pipelines where a downstream value may remain closed and even through the flow indicator remains full, there may not be any flow. In such cases, the flapper position alone can indicate where there is flow.

Specifications

Brand	Floin
Model	SFI 120
Size	15 to 300 NB
Connection	Flanged/Screwed
Mounting	Horizontal / Vertical
Material	CI / WCB / CF8 / CF8M / Customized
Glass	Toughened Glass / Toughened Borosilicate Glass / Soda Lime Glass
Gasket	PTFE / CAF / NON-Asbestos
Fasteners	ASTM A193 Gr B7 - A194 Gr2H / SS304 / SS316

Rotating wheel (Rotary) type Sight Flow Indicators are suitable for installation in any position, but are particularly adapted to pipelines carrying dark opaque solutions, where the motion of the wheel is easily detected. This model is equally adapted to transparent solutions and gases. It is frequently installed where observations must be made from a distance.
Specifications

Brand	Floin
Model	SFI 130
Size	15 to 300 NB
Connection	Flanged/Screwed
Mounting	Horizontal / Vertical
Material	CI / WCB / CF8 / CF8M / Customized
Glass	Toughened Glass / Toughened Borosilicate Glass / Soda Lime Glass
Gasket	PTFE / CAF / NON-Asbestos
Fasteners	ASTM A193 Gr B7 - A194 Gr2H / SS304 / SS316

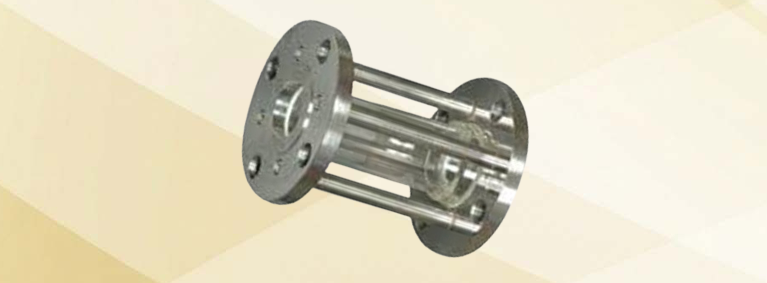

Full View Flow Glass are assembled with tubular Borosilicate glass. These indicators are simple in construction and used for checking flow from any direction where various values or pump might have to be operated based on the flow in the line. These are recommended where there is no mechanical strain in the pipeline. Inside diameter of the glass tube is as large as or larger than the nominal size of the flow indicators.

Specifications

Brand	Floin
Model	SFI 150
Size	Customized
Connection	Flanged/Screwed
Mounting	Horizontal / Vertical
Material	ASTM A105 / Carbon Steel / SS304 / SS316 / Customized
Glass	Toughened Glass / Toughened Borosilicate Glass / Soda Lime Glass
Gasket	PTFE / CAF / NON-Asbestos
Fasteners	ASTM A193 Gr B7 - A194 Gr2H / SS304 / SS316

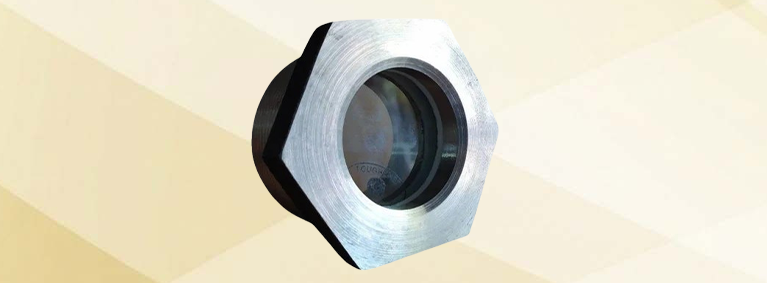

Oil Glass is used for monitoring fluid levels Typical applications are hydraulic system reservoirs and lubricating, cutting and cooling fluid tanks

Specifications

Brand	Floin
Model	OG 410
Size	20 to 80 NB
Connection	Screwed
Mounting	Vertical
Material	ASTM A105 / Carbon Steel / SS304 / SS316 / Customized
Glass	Toughened Glass / Toughened Borosilicate Glass / Soda Lime Glass
Gasket	PTFE / Rubber
