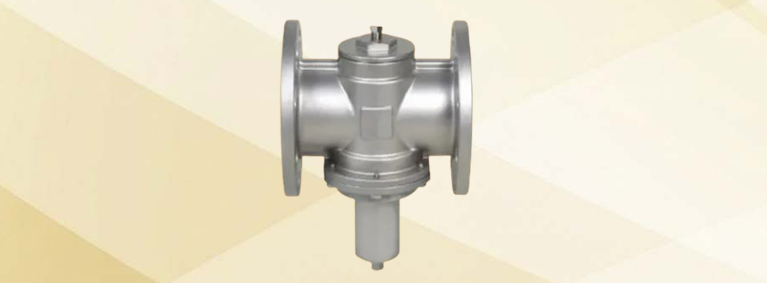

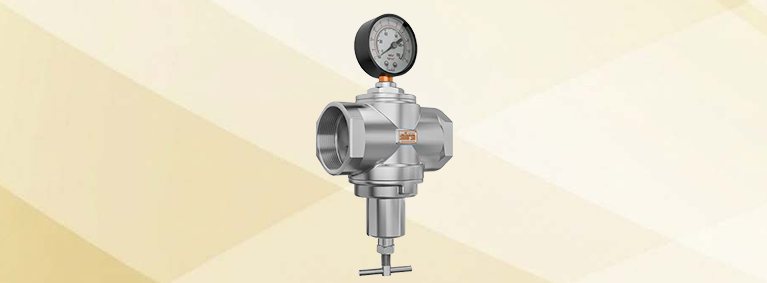

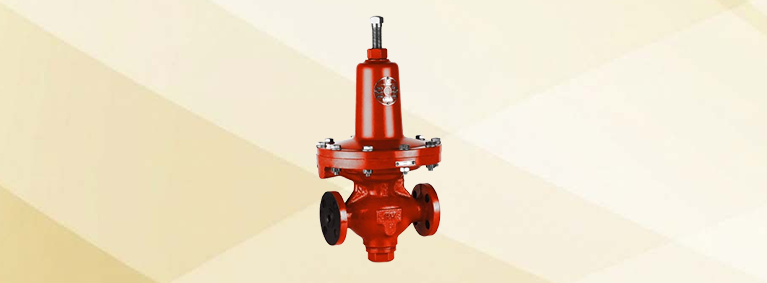

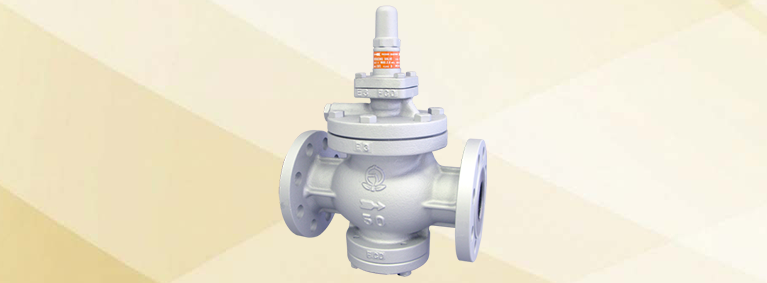

Pressure Reducing valve reduces the pressure of the Steam , Air, Gas and Liquid that goes through it, and is used to obtain a regulated and constant value at its outlet. The pressure reducing valve is fully automatic. Pressure Reducing Valve controls and maintains a preset, reduced downstream (outlet) pressure by causing the main valve to throttle and sustain the desired reduced pressure regardless of variations in demand and upstream (inlet) pressure. The throttled position of the main valve is controlled by an adjustable pilot valve operating in conjunction with an orifice. The pilot valve senses the downstream (outlet) pressure and reacts immediately to reposition the valve as the outlet pressure tends to increase or decrease with varying demand.

Specifications

Brand	Floin
Model	PRV 1101
Size	15 TO 600 NB
Temperature Range	-40°C TO 400°C
Material	WCB / CF8 / CF8M / CF3 / CF3M
Inlet Pressure (max)	1 TO 100 Bar
Outlet Pressure (max)	Up TO 40 Bar

Specifications

Brand	Floin
Model	PRV 1102
Size	15 TO 600 NB
Temperature Range	-40°C TO 120°C
Material	WCB / CF8 / CF8M / CF3 / CF3M
Inlet Pressure (max)	0.3 TO 10 Bar
Outlet Pressure (max)	15MMWC TO 7 Bar

Specifications

Brand	Floin
Model	PRV 1103
Size	15 TO 50 NB
Temperature Range	-40°C TO 120°C
Material	WCB / CF8 / CF8M / CF3 / CF3M
Inlet Pressure (max)	Up TO 28 Bar
Outlet Pressure (max)	0.1 TO 17 Bar
