Tubular Level Gauge is direct indication of liquid level in a vessel. The level of liquid inside the glass tube is same as the liquid level in the tank. Scale mounted on C Frame indicates liquid level. These are relatively simple devices that can be expected to work for years.

Specifications

Brand	Floin
Model	LG 910
Size	15 to 50 NB
Connection	Flanged/Screwed
Mounting	Side
Material	CS / SS304 / SS316

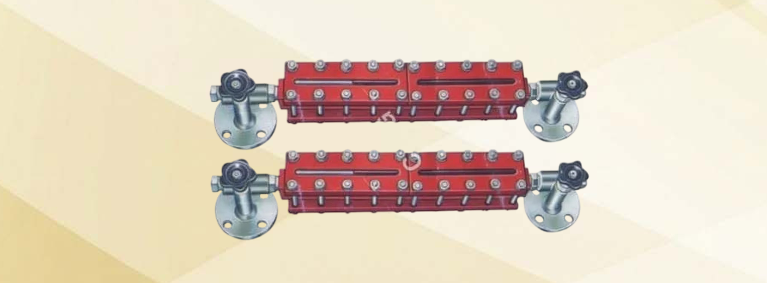

Transparent level gauge can be used to observe the liquid level changes based on the transparency boundary of two media.

Specifications

Brand	Floin
Model	TLG 930
Size	15 to 50 NB
Connection	Flanged/Screwed
Mounting	Side
Material	CS / SS304 / SS316

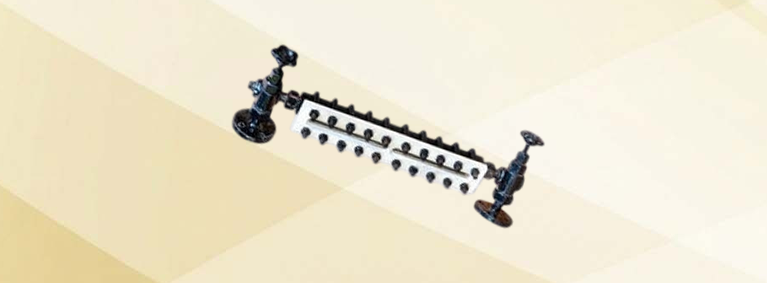

Reflex level gauge. One side surface of Reflex Glass to use flat glass has several grooves for reflecting prism. The principle of the Reflex Glass is based on the difference in the refractive indices of liquid and gas or in particular of water and steam. Liquid level shows conspicuously dark hard colour for liquid space and light white colour for empty space.

Specifications

Brand	Floin
Model	RLG 940
Size	15 to 50 NB
Connection	Flanged/Screwed
Mounting	Side
Material	CS / SS304 / SS316

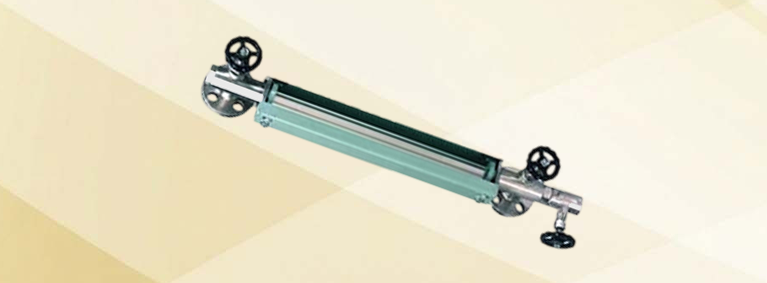

Magnetic level gauges use magnetism to link the indicator in a gauge to a float inside of float chamber in order to accurately show the level of fluid within. As the position of the float changes, the indicator moves up or down by the same amount, meaning that the level in the measuring chamber will always be the same as the fluid level in the vessel itself

Specifications

Brand	Floin
Model	MLG 950
Size	15 to 50 NB
Connection	Flanged/Screwed
Mounting	Side
Material	SS304 / SS316

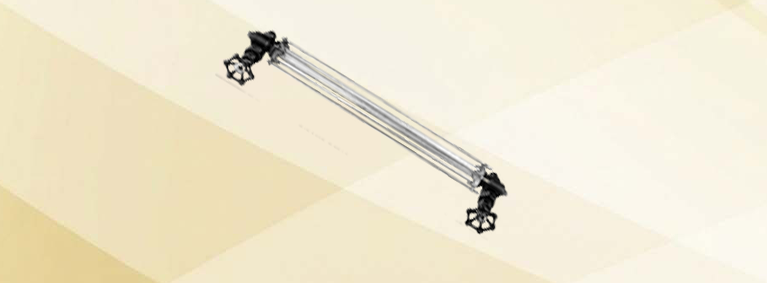

The tubular level gauge is assembled firmly with heavy toughened borosilicate glass with tie rods. Tubular Level Gauge is direct indication of liquid level in a vessel. The level of liquid inside the glass tube is same as the liquid level in the tank.

Specifications

Brand	Floin
Model	LG 920
Size	15 to 50 NB
Connection	Flanged/Screwed
Mounting	Side
Material	CS / SS304 / SS316

Float and Board Level Indicator is a mechanical float operated level Indicator that gives measurement of liquid level. Perfectly aligned guide wire, pulley and scale. Ideal for outdoor Installation.

Specifications

Brand	Floin
Model	FCL 960
Size	Customized
Mounting	Vertical
Material	ASTM A105 / Carbon Steel / Customized
Fasteners	ASTM A193 Gr B7 - A194 Gr2H

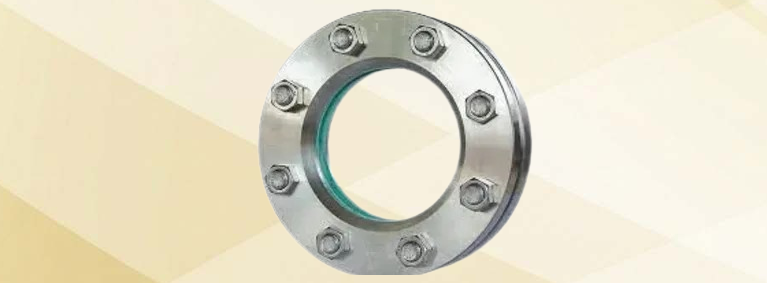

This Sight Glass is designed to be welded directly onto a tank or other liquid-containing vessel. Standard Liquid Level Gauge units are furnished with a flat bottom. Upon request, the Sight Glass can be machined with a cylindrical radius to match the contour of the vessel. The Sight Glass are available in single or multiple section types.

Specifications

Brand	Floin
Model	SG 310
Size	50 to 300 NB
Connection	Flanged
Mounting	Vertical
Material	ASTM A105 / Carbon Steel / SS304 / SS316 / Customized
Glass	Toughened Glass / Toughened Borosilicate Glass / Soda Lime Glass
Gasket	PTFE / CAF / Non-Asbestos
Fasteners	ASTM A193 Gr B7 - A194 Gr2H / SS304 / SS316

Screwed sight glass (Oil Glass) is used for monitoring fluid levels Typical applications are hydraulic system reservoirs and lubricating, cutting and cooling fluid tanks
Specifications

Brand	Floin
Model	OG 410
Size	20 to 80 NB
Connection	Screwed
Mounting	Vertical
Material	ASTM A105 / Carbon Steel / SS304 / SS316 / Customized
Glass	Toughened Glass / Toughened Borosilicate Glass / Soda Lime Glass
Gasket	PTFE / Rubber
